Cubism SDK Trouble Report
1

[Cubism SDK Version] Cubism SDK for Unity R5
[OS Name and Version] Windows 11
[Development Tools Used] Unity 6000.0.78f1
[Issue Description]

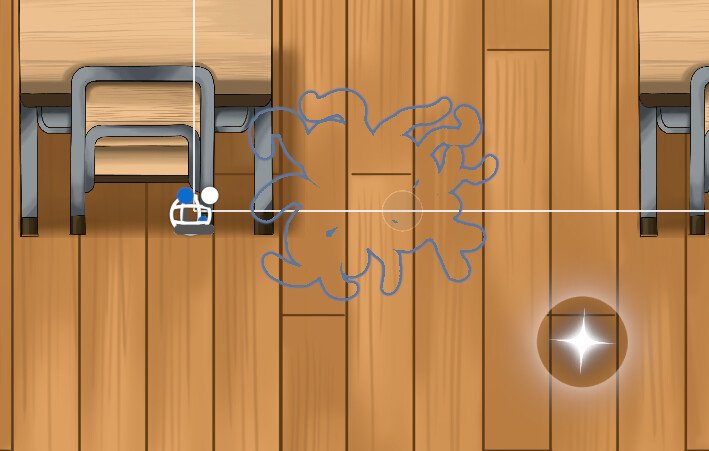

On the left is the model. It can be displayed when nothing else is present, but the background and UI completely cover it.

image375×299 28.6 KB

image709×451 72 KB

I adjusted the Sorting Layer and Position X to be the same, but nothing appears at all.
I searched on ChatGPT and Google, and they also suggested adjusting the Sorting Layer and Position X.

image384×296 21.5 KB

I don’t know what to do to make the model appear.

2

@Kana_Sota

Thank you very much for consistently supporting our products.
This is the Live2D team.

Is this Unity project using the Universal Render Pipeline (URP) or the Built-in Render Pipeline?

Also, could you please specify how exactly you are displaying the UI?

We look forward to your response.

3

The Unity project uses the Universal Render Pipeline.

Therefore, the UI displays canvases.

4

@Kana Kouta

Thank you.

I have one more question: could you please provide some background information as well?

I apologize for the inconvenience, but I appreciate your help.

5

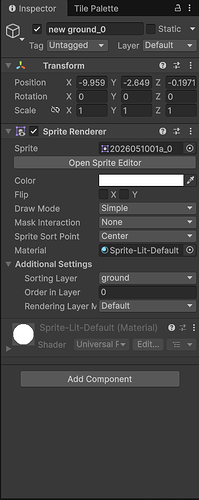

Yes, this is it.

image357×896 47.5 KB

6

@Kana_Souta

Thank you for your response.

In the URP version of Cubism SDK for Unity, a custom render path is used for rendering. Due to this mechanism, model rendering is performed before transparent objects are rendered.

Since Sprites used for backgrounds and UI are transparent objects, they are rendered in front of the model.

To control the rendering order between Cubism models and objects like Sprites, please use the rendering interruption feature of Cubism SDK for Unity.

Additionally, you can avoid this issue by using Unity’s RenderTexture for off-screen rendering. You can render the output of a Camera displaying only the Cubism model into a RenderTexture, and then display that RenderTexture on the screen. Please refer to Unity’s official documentation for more details.

Best regards.
